Designed for medium to heavy lift or long duration missions

Used by serious aerial professionals

Well engineered multi rotor frame, Australian designed, proven and affordable.

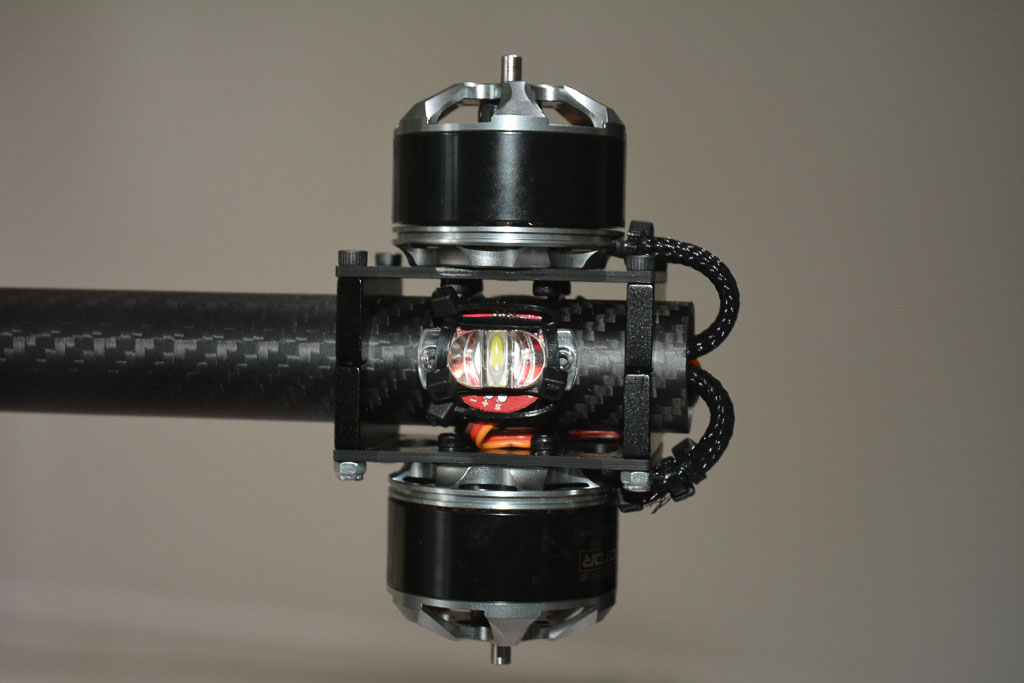

Sokar can be modified to suit your requirements and can be configured as a X4 or as a coaxial X8 system.

The Sokar design is typically more compact than traditional octocopter systems and has similar payload and redundancy for motor/esc failures.

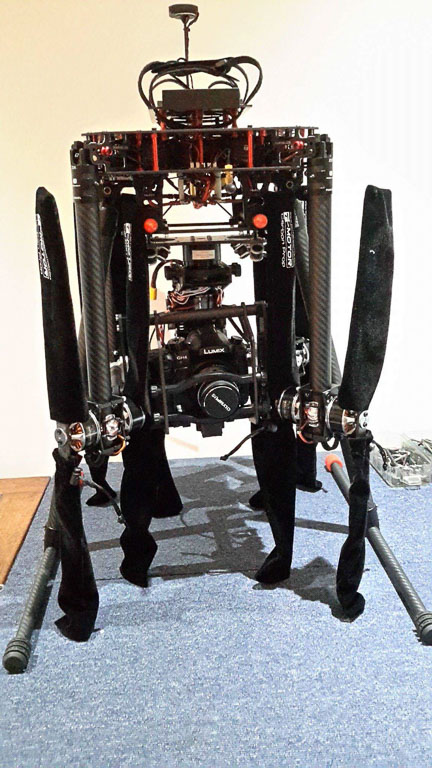

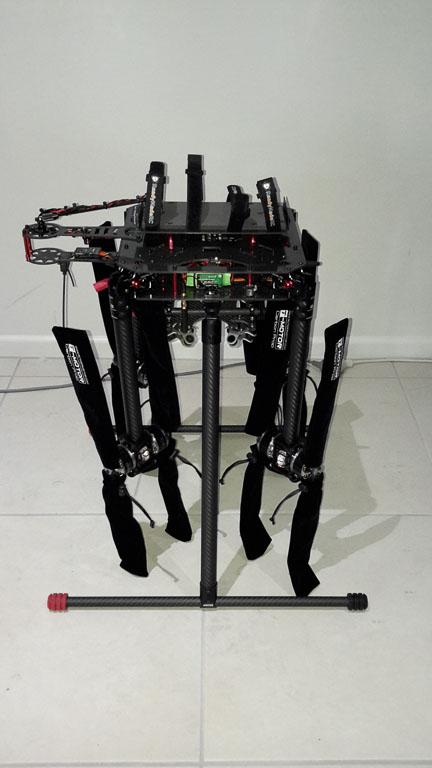

The frame can fold down quickly for transportation and storage but when unfolded the system has an impressive size,
Exactly what is needed to safely carry heavy payloads!

Payloads are easily interchangeable through our own unique design quick release system.

Sokar can carry many payloads including a high quality 3-axis gimbal with a DSLR camera but it can be easily adapted for all manner of payloads.

Please fill out the form on our contact page to let us know your needs so we can quote you on a suitable system.




  • X4 or X8 Motor Configuration
  • Retractible Undercarriage
  • CNC cut Carbon Fibre Construction
  • 2.0mm Thick Carbon Fibre 3K Twill Frame Plates
  • 2.0mm Thick Carbon Booms
  • Folding arms for storage and transportation
  • Interchangeable Payload
  • Flight Duration - 15-25min depending on Payload
  • Folds to only 510mm length x 470mm wide x 620mm high
  • 15"- 22" propellers
  • Choice of high quality Motors - T-Motor or KDE
  • 4 - 8x ESC depending on motor configuration
  • Power Distribution Board, Pixhawk 2
  • Flight Controller - Pixhawk 2, GPS, Waypoint Navigation, Follow Me
  • Multiple Flight Modes incl. Waypoint Navigation, Follow Me, Position Hold, Terrain Following, Auto mode
  • 6S Lithium Polymer Batteries



Sokar is configured based on your needs,
An example X8 configuration to carry a DSLR system:

  • 8 x T-Motor 4014-9 400kV Navigator 900W motors
  • 8 x T-Motor 40A 600Hz Air Esc
  • 8 x T-Motor 16x4 Carbon Fiber propellors
  • Single or dual 6S - example 22000mAH Lipo
  • Pixhawk 2 Flight Controller
  • GPS
  • Long Range Telemetry
  • Navigation Strobe Lights (visible from 2-3km away at night)
  • R/C Futaba / Spectrum R/C Control
  • 2nd Operator optional - R/C Control system for Payload
  • HD Video Transmission - Air to Ground
  • Companion Computer for Flight Controller - Optional
  • 3-axis gimbal (We do not provide cameras - We will require your camera though to balance and configure the gimbal)

Please fill out the form on our contact page to let us know your needs so we can quote you on a suitable system.

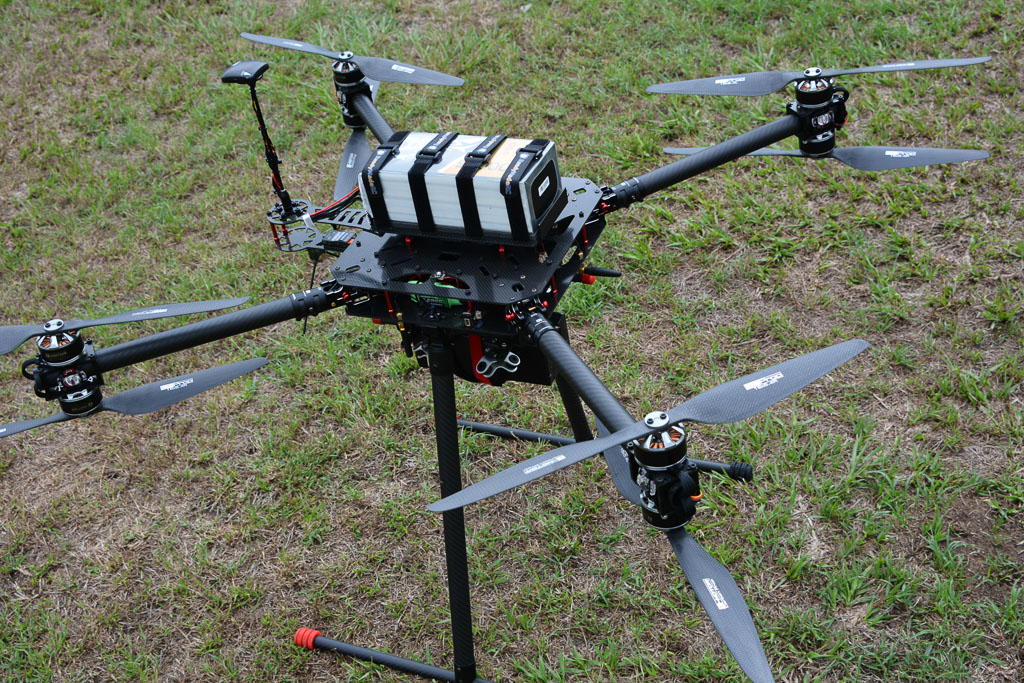

Currently in stock - Sokar quad multirotor system. We can upgrade this system to X8 if required.

  • Quad Multirotor system with Pixhawk 2, GPS, Telemetry Tx,
  • 4 T-Motor MN4014-9, 40A Esc & 16x5.4prop,
  • Power Distribution and required electronics and Strobes.
  • No payload, R/C, Battery.

(Cart Image shows X8 system)

Please discuss your requirements with us so we can tailor the system to suit.

Sokar

Heavy lift system, designed from the ground up in Australia for heavy lift or long endurance flights.

The payload is evenly distributed and uses our specially designed quick release mechanism to enable payloads to be field interchangeable within seconds, expanding your options and useability of this system.

Whilst this is not a kit, we can provide a constructed bare frame without motors/esc's, other electronics or flight controller for you to complete.

If you purchase a complete system from us we will construct this system tailored to your requirements and test fly it before handing it over. We can also provide additional training where required.
