Designed for reconnaissance and observation where an unobstructed view both up and down is required.

Most multirotor systems have a camera that is mounted under the frame which inhibits the view when the camera
is angled horizontally or upwards as the frame or propellers are typically in the image.

Multirotor systems also do not fly or hover perfectly level as they need to take on an angle to compensate for wind.
This exacerbates the problem. Reconn does not suffer from this and the props and frame will never be in the shot.

Used by serious aerial professionals.

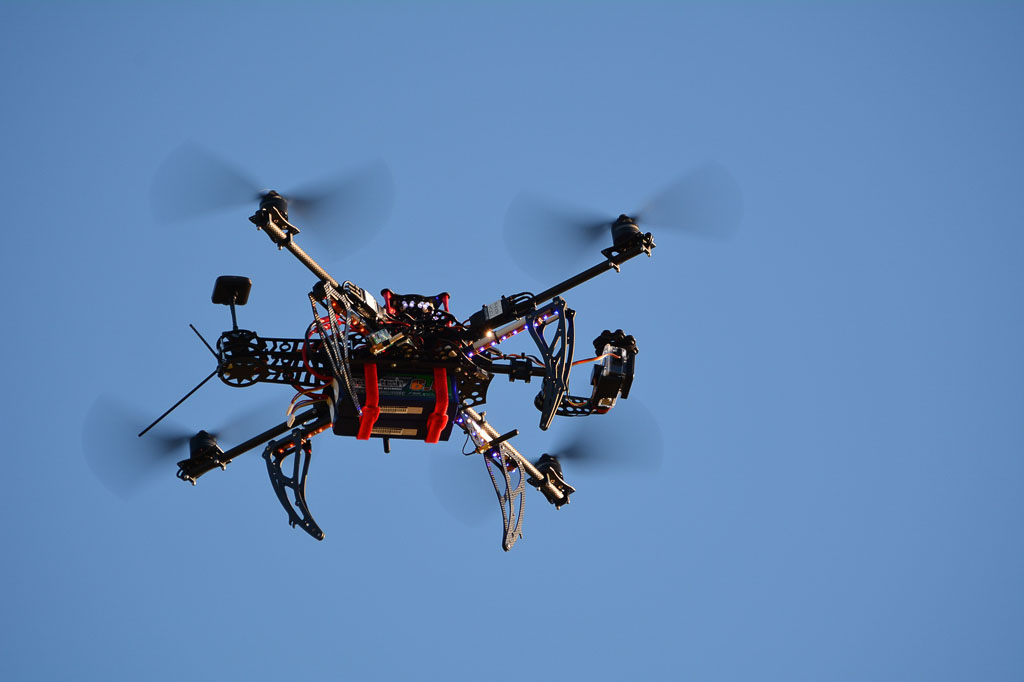

Well engineered multi rotor frame, Australian designed, proven and affordable.

Reconn is configured to suit your requirements and can be configured as a X4 or as a coaxial X8 system.

Please fill out the form on our contact page to let us know your needs so we can quote you on a suitable system.




  • X4 or X8 Motor Configuration
  • Fixed Undercarriage so it can land on uneven ground
  • CNC cut Carbon Fibre Construction
  • Carbon Fibre 3K Twill Frame Plates
  • Carbon Booms
  • Flight Duration - 12-25min depending on Payload
  • 12"- 16" propellers
  • Choice of high quality Motors - T-Motor or KDE
  • 4 - 8x ESC depending on motor configuration
  • Power Distribution Board, Pixhawk 2
  • Flight Controller - Pixhawk 2, GPS, Waypoint Navigation, Follow Me
  • Multiple Flight Modes incl. Waypoint Navigation, Follow Me, Position Hold, Terrain Following, Auto mode
  • 4-6S Lithium Polymer Batteries



Reconn is configured based on your needs

An example X4 configuration:

  • 4 x T-Motor 2814-10 770kV Professional Series motors
  • 4 x T-Motor 30A 600Hz Air Esc
  • 4 x T-Motor 12x4 Carbon Fiber propellors
  • Dual 4S - example 2 x 6000mAH Lipo
  • Pixhawk 2 Flight Controller
  • GPS
  • Long Range Telemetry

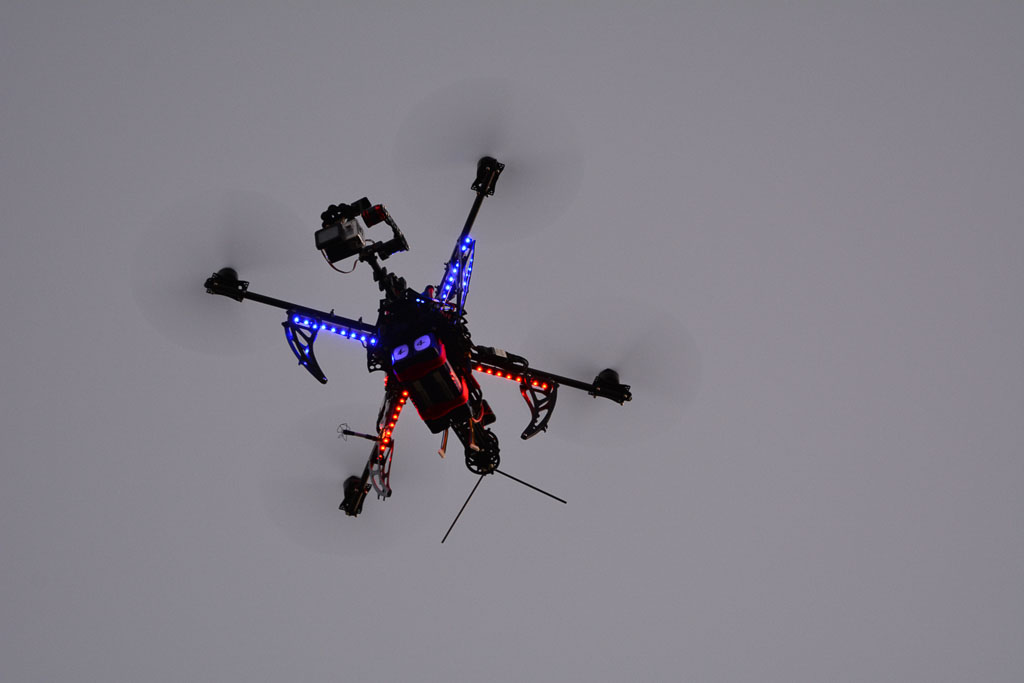

  • Navigation Strobe Lights (visible from 2-3km away at night)
  • R/C Futaba / Spectrum R/C Control
  • 2nd Operator optional - R/C Control system for Payload
  • HD Video Transmission - Air to Ground
  • 2-axis gimbal (We do not provide cameras - We will require your camera though to balance and configure the gimbal)

Please fill out the form on our contact page to let us know your needs so we can quote you on a suitable system.



To purchase Reconn please contact us as the system is designed and configured around what inspection sensor / camera you wish to use.

Reconn

Reconn is the ultimate reconoitre system, designed from the ground up in Australia for observation.

It's has a unique ability for the camera to rotate vertically through 180°, meaning that the camera can be controlled from the ground and be rotated to look anywhere from directly downwards to straight up without having propellers or frame in view.

Whilst this is not a kit, we can provide a constructed bare frame without motors/esc's, other electronics or flight controller for you to complete.

If you purchase a complete system from us we will construct this system tailored to your requirements and test fly it before handing it over. We can also provide additional training where required.
